Pins, Clips and Rivets

R Clips, also known as R Keys, R Pins or Hitch Pins. Often used to secure ends of round shafts such as clevis pins or axles. Re-usable and made from A2 grade stainless steel, they can be viewed as a better option than split pins as they are easier to remove whilst essentially doing the same job.

Spring cotter pins, also known as R clips with a double loop. The extra loop gives more flexibility than the regular cotter pin, making them easier to use and adjust. Often used to secure ends of round shafts such as clevis pins or axles. They are re-usable and are easier to remove than split pins. Made from A2 (304) stainless steel, they are suitable for marine and outdoor applications, such as securing canopy frames and other ship deck mounted items. Conforms to DIN 11024.

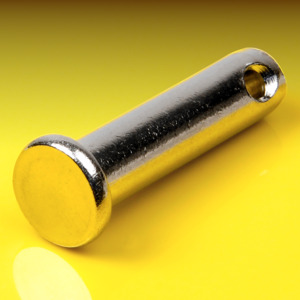

Clevis Pins are used to allow rotation between connected parts about the Axis of the pin. Our Clevis Pins are unthreaded and consist of a head section, shanked body and a drilled hole across the shank. Used in conjunction with split pins or cotter pins to fix the Clevis in place. Uses include Agricultural Machinery, Towing, Sailing and Linkages. All dimensions are approximate.

Cotter Pins, also known as Split Pins are designed to be inserted through a hole and bent to secure in place, they are commonly made from wire which is semi-circular in cross section and square cut at the end, other specialist end finishes include Mitre or Bevel. Lengths are measured from the end of the tines to the point the base of the eyelet hole contacts with the host material. An unthreaded fastener solution for single use, as bending fatigue can cause failure if re-used.

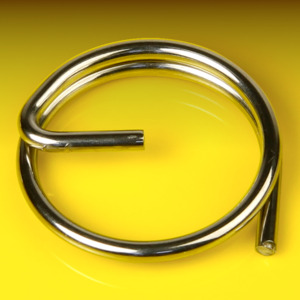

Cotter rings, also known as split cotter rings, kick-out rings and retaining rings. These are made from A4 marine grade stainless steel and are durable and corrosion resistant. Designed for attaching and securing items and for use with clevis pins. They are easily removable and fast to install. Insert the end outside the circle into a hole on the item it's attaching to and wind it on.

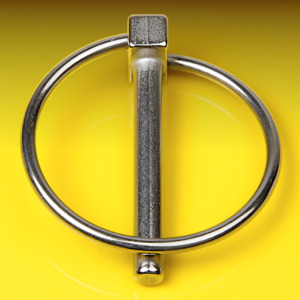

Linch pins, also known as lynch pins. Strong and durable A4 stainless steel ring used for mooring ropes and chains, diving gear and saddlery. Also referred to as linch pins with O ring.

Dowel Pins or Parallel Pins are short cylindrical sections of metal used for precise alignment of machine parts and mould tools. They are often also used as reference points for mechanical engineers to ensure repeatable and accurate assemblies. The diameter of these parts is produced to a specific tolerance so that the desired fit can be achieved with a suitably sized and toleranced hole. In this case the ISO fit code is m6.

Extractable dowel pins with an internal metric thread. Extractable dowel pins are a type of parallel pin, also known as a pull dowel pin. These pins are typically used for locating and aligning components in tools, moulds and jigs, and feature an internal thread to help with their removal again when required. These extractable dowel pins are toleranced to an m6 fit. They may include a slight flat along their length for air release. The internal thread size varies by pin diameter but is always a standard metric coarse pitch.

Blind rivets, also known as pop rivets, are an unthreaded fastener, and can be used when access is only available on one side of the workpiece or joint. These rivets are fitted using one of several types of riveting tool. These items are manufactured in many different types and material combinations. The examples here are the standard open type, with a domed or pan head, and are to the ISO 15983 standard, unless stated otherwise.

Blind rivets, also known as pop rivets, are an unthreaded fastener, and can be used when access is only available on one side of the workpiece or joint. These rivets are fitted using one of several types of riveting tool. These items are manufactured in many different types and material combinations. The examples here are the standard open type, with a countersunk head, and are to ISO 15984 standard.

Blind rivets, also known as pop rivets, are an unthreaded fastener, and can be used when access is only available on one side of the workpiece or joint. These rivets are fitted using one of several types of riveting tool. These items are manufactured in many different types and material combinations. The examples here are the standard open type, with a domed or pan head, and are to the DIN 7337 standard.

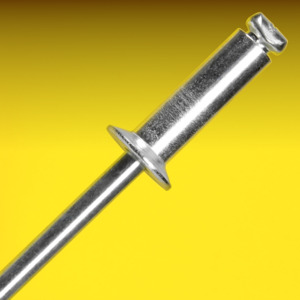

Blind rivets, also known as pop rivets, are an unthreaded fastener, and can be used when access is only available on one side of the workpiece or joint. These rivets are fitted using one of several types of riveting tool. These items are manufactured in many different types and material combinations. The examples here are the standard open type, with a countersunk head, and are to the DIN 7337 standard.

Standard large flange head open blind rivets are the most widely used type of rivet. The wide diameter of the head is larger than that of the standard sized domed head rivet, so increases the bearing area. The large flange head open blind rivets are designed to be used in situations with low load-bearing requirements, such as thin or delicate materials. The large head will offer support at the fixing point and is also good for covering over-sized holes.

Dome head peel type blind rivets are designed to be used with soft or low resistance materials and are ideal for connecting soft materials to harder materials. Use with plastics, rubber, laminates, wood, GRP, plasterboard and sheet metals. As the rivet is compressed to create a fixing, the body of the rivet splits into 4 and curls down to grip into the surface, giving a wide bearing area. Blind rivets can be also known as breakstem rivets.

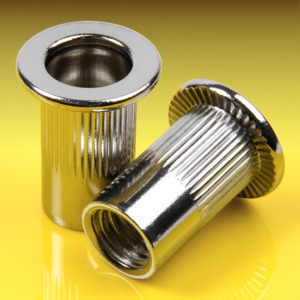

Blind rivet nuts with a flat head, a straight knurled shank and an open end. Rivet nuts are also known as blind nuts, rivnuts and nutserts. For use with sheet metals and thin gauge metal parts, such as panels, castings and tubes. Rivet nuts are installed using a rivet nut gun, which compresses the thinner walled part, making it push out to form a collar. The knurling/serrations is there to grip the rivet nut and stop is spinning. Rivet nuts, like rivets are installed from one side, which is useful when there is no back access. An open ended rivet nut allows for a longer screw to pass through the nut, making it more vibration resistant. The tightening torque specifications are guide values depending on the material of the original component and must be checked by testing the component.

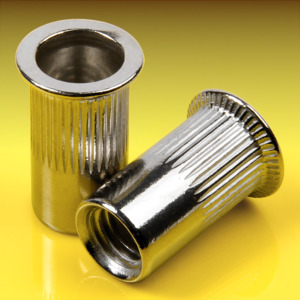

The countersunk head on these rivet nuts offer a flush, non-interfering fit when installed into a suitable countersunk hole. As with the flat head, the countersunk head can be used to clamp a single or multiple sheets of materials. The knurling on the body helps the rivet nut grip the connecting surface and help to prevent it turning. The open ends allows the rivet nut to be used with longer lengths of bolts. Used in a multitude of industries such as aerospace, automotive, rail, HVAC, white goods, electronics, DIY and general engineering.

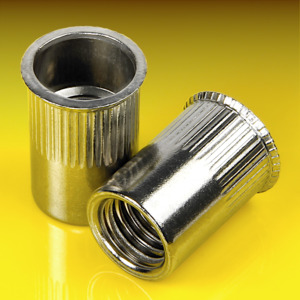

Low countersunk rivet nuts are a specialised version of the countersunk head. With their reduced head height, it gives an almost flush finish where a non-interference fit is not critical. It can be set without the need to produce a countersunk hole and therefore can be more cost effective. The low countersunk height is ideal for very thin gauge sheet materials and when clamping thin single sheets. The knurling helps the nut to grip to the adjoining surface. The open ends allows the rivet nut to be used with longer lengths of bolts. Used in a multitude of industries such as aerospace, automotive, rail, HVAC, white goods, electronics, DIY and general engineering.

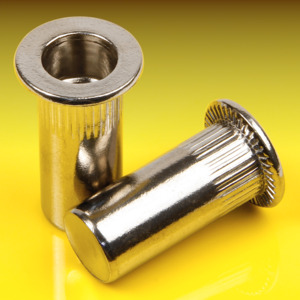

Blind rivet nuts with a flat head, a straight knurled shank and a closed end. Rivet nuts are also known as blind nuts, rivnuts and nutserts. For use with sheet metals and thin gauge metal parts, such as panels, castings and tubes. Rivet nuts are installed using a rivet nut gun, which compresses the thinner walled part, making it push out to form a collar. Rivet nuts, like rivets are installed from one side, which is useful when there is no back access. Flat headed rivet nuts offer the best strength and stability as they spread the load over a greater surface area, with the knurling helping the nut grip the connected materials and stop it from spinning. The closed end will help provide a seal at the joint. Commonly used in white goods, electrical enclosures, indoor and outdoor electronic signs, automotive, aerospace, rail and HVAC. Tightening torque specifications are guide values depending on the material of the original component and must be checked by testing the component.

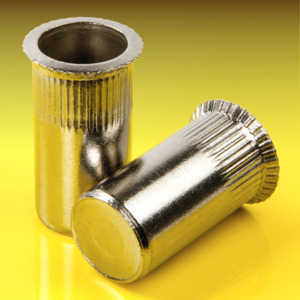

Blind rivet nuts are used for attaching a nut onto sheet metals and thin metal gauge parts, such as panels, tubes and castings. The riveted nut will then allow attachment and detachment of components easily using the correct sized bolt. The larger sized rivet nuts can clamp together multiple layers of materials. Blind rivet nuts are also known as riv nuts, blind nuts and nutserts. This type here is the same as the countersunk round open rivet nut, but the end is closed off so that it can be used when a moisture or pressure-tight seal is required. The knurling helps further to grip the nut onto the connecting materials and prevent the nut from spinning. Used in white goods, electrical enclosures, indoor and outdoor electronic signs, automotive, aerospace, rail and HVAC.

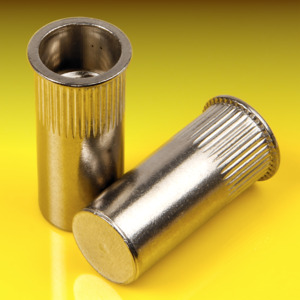

Blind rivet nuts are used for attaching a nut onto sheet metals and thin metal gauge parts, such as panels, tubes and castings. The riveted nut will then allow you to attach and detach components easily using the correct sized bolt. The larger sized rivet nuts can clamp together multiple layers of materials. Blind rivet nuts are also known as riv nuts, blind nuts and nutserts. These low countersunk round rivet nuts feature a closed end, enabling the rivet nut joint to be sealed and can prevent liquids and gases from leaking or penetrating. The knurling/serrations will help grip the rivet nut to the adjoining surfaces and prevent it from loosening and turning. Used in white goods, electrical enclosures, indoor and outdoor electronic signs, automotive, aerospace, rail and HVAC.

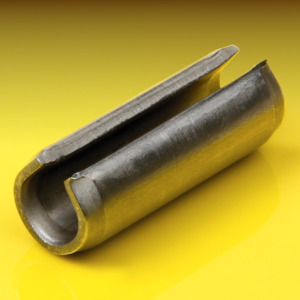

Slotted roll pins are a heavy duty type of self retaining pin, where the spring steel they are made from allows the pin to sit in tension within the hole that they are fitted into. Slotted roll pins are also known as slotted spring pins, tension pins, split dowel pins and hollow spring pins. Conform to ISO 8752 / DIN 1481.

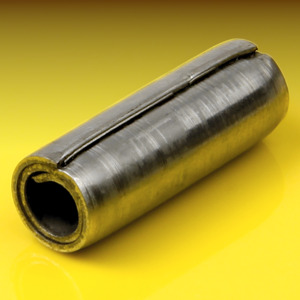

Spiral roll pins are similar to the slotted roll pin, but are constructed from a spiral of steel, forming a tube shape. These are stronger than the single coil of the rolled slotted pin, exerting pressure more evenly around it circumference, which helps to absorb vibrations better. These are also known as coiled spring pins and conform to ISO 8750.

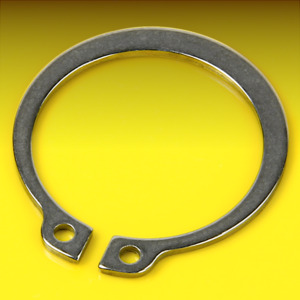

External circlips are also known as retaining rings for shafts or C-clips. Made from spring or stainless steel, circlips are clipped into place using specific circlip pliers or a taper. On a shaft, circlips are used to lock components such as gears, pulleys and bearings into place. These circlips are designed to fit into a groove cut to a specific size on a shaft.

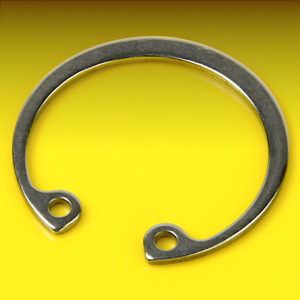

Internal circlips are also known as retaining rings for bores. Made from spring or stainless steel, internal circlips are used to retain components such as bearings into place within the bore. Internal circlips are located into a groove of a certain depth within the bore hole.

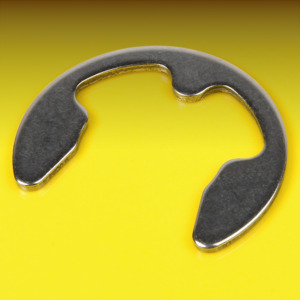

E clips are a type of circlip, and are designed for fitment into a mating groove on a shaft or tube. E clips can be used in pairs to help locate other components in place and prevent them from moving along the shaft when the assembly is turning or spinning. As the E clip is pressed into the groove on fitting, it will spread open and grip the shaft between its three points. E-clips are also known as E type circlips, or E rings. E Clips are sized by the diameter of shaft or groove that they are designed to fit.
