Allen Key Screws Button Head UNF 1/4 x 5/8 inch in Zinc Plated Steel - ASME B18.3

A popular and attractive socket head screw, typically used where aesthetics are important, or where a lower profile domed finish is required. The hex drive is generally smaller than other hex driven ranges and thus the ultimate tightening torque is reduced. Manufactured to ASME/ANSI B18.3, and always fully threaded.

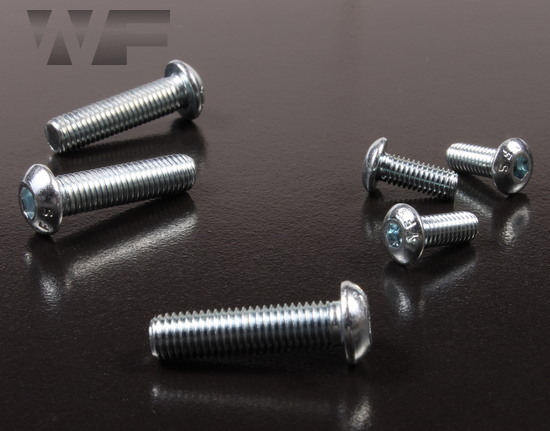

Image of UNF Socket Head Button Screws ASME B18. 3-2003 in BZP image
technical drawing of UNF Socket Head Button Screws ASME B18. 3-2003
Technical Summary
d nominal diameter 1/4
tpi threads per inch 28
dk head diameter 0.437
k head height 0.132
t recess depth 0.087
s drive size 5/32
Standard ASME B18.3
Material Bright Zinc Plated (BZP) Steel
all dimensions in inches
datasheet
Description Sale Qtys Qty Price Breakdown Despatch Estimate
Allen Key Screws Button Head UNF 1/4 x 5/8 inch in Zinc Plated Steel
(WF27802)
£2.39
Allen Key Screws Button Head UNF 1/4 x 5/8 inch in Zinc Plated Steel   (WF27802)
£2.39
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
