| Technical Summary | |||||

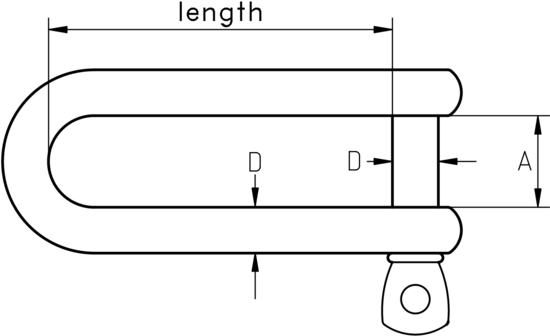

| D (mm) | A (mm) | Length (mm) | Approx Breaking Load kN | ||
| 4 | 8 | 32 | 6.50 | ||
| 5 | 10 | 37 | 8.00 | ||
| 6 | 12 | 45 | 12.00 | ||
| 8 | 16 | 60 | 20.00 | ||
| 10 | 20 | 75 | 40.00 | ||
| 12 | 24 | 90 | 48.00 | ||
| all dimensions in millimetres (mm) | |||||
|
|||||
| Description | Sale Qtys | Qty | Price | Breakdown | Despatch Estimate | |
|---|---|---|---|---|---|---|

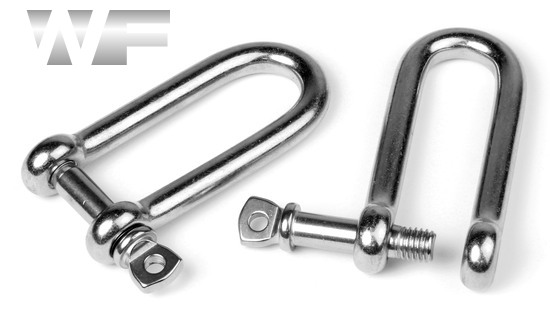

| 4mm D Shackle Long in A4 Stainless WF59410 |
 |
£0.00 | ||||
| 5mm D Shackle Long in A4 Stainless WF59411 |
|
£0.00 | ||||
| 6mm D Shackle Long in A4 Stainless WF59412 |
|
£0.00 | ||||
| 8mm D Shackle Long in A4 Stainless WF59413 |
|
£0.00 | ||||
| 10mm D Shackle Long in A4 Stainless WF59414 |
|
£0.00 | ||||
| 12mm D Shackle Long in A4 Stainless WF59415 |
|
£0.00 | ||||
| Technical Summary | |||||
| D (mm) | A (mm) | Length (mm) | Approx Breaking Load kN | ||
| 4 | 8 | 32 | 6.50 | ||
| 5 | 10 | 37 | 8.00 | ||
| 6 | 12 | 45 | 12.00 | ||
| 8 | 16 | 60 | 20.00 | ||
| 10 | 20 | 75 | 40.00 | ||
| 12 | 24 | 90 | 48.00 | ||
| all dimensions in millimetres (mm) | |||||
|
|||||
