UNF Fillister Head Slotted Machine Screws ASME B18.6.3 in A2 Stainless Steel

UNF slotted fillister machine screws have a large slotted cylindrical head, with a slightly convex top surface. Fillister head machine screws are the preferred head type for counterbored holes and can also be used for protecting a surface as they raise the level which the screwdriver is used to tighten the fixing.

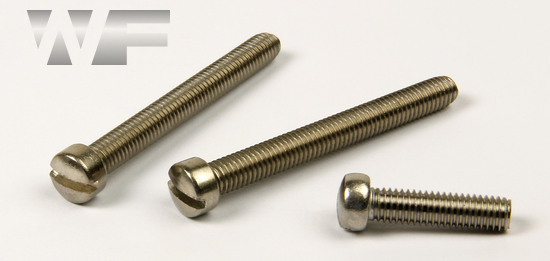

Image of UNF Fillister Head Slotted Machine Screws ASME B18.6.3 in A2 image
Material Selection
A2

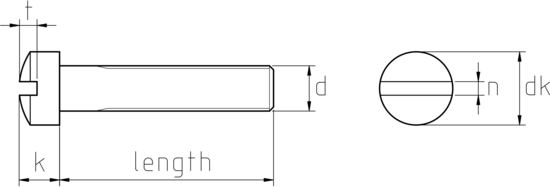

technical drawing of UNF Fillister Head Slotted Machine Screws ASME B18.6.3
Technical Summary
Standard ASME B18.6.3
all dimensions in inches
html graphic ASME B18.6.3 UNF Slot Fillister Machine Screw Standard HTML
pdf graphic ASME B18.6.3 UNF Slot Fillister Machine Screw Standard PDF

< View All UNF Bolts, Nuts and Washers
Description Sale Qtys Qty Price Breakdown Despatch Estimate
10-32 x 1/4 inch UNF Slot Fillister Head Machine Screw in A2 Stainless
WF89724		 £0.00
10-32 x 3/8 inch UNF Slot Fillister Head Machine Screw in A2 Stainless
WF89725		 £0.00
10-32 x 7/16 inch UNF Slot Fillister Head Machine Screw in A2 Stainless
WF89726		 £0.00
10-32 x 1/2 inch UNF Slot Fillister Head Machine Screw in A2 Stainless
WF89727		 £0.00
10-32 x 5/8 inch UNF Slot Fillister Head Machine Screw in A2 Stainless
WF89728		 £0.00
10-32 x 3/4 inch UNF Slot Fillister Head Machine Screw in A2 Stainless
WF89729		 £0.00
10-32 x 7/8 inch UNF Slot Fillister Head Machine Screw in A2 Stainless
WF89730		 £0.00
10-32 x 1-1/2 inch UNF Slot Fillister Head Machine Screw in A2 Stainless
WF89733		 £0.00
10-32 x 2 inch UNF Slot Fillister Head Machine Screw in A2 Stainless
WF89734		 £0.00
10-32 x 2-1/2 inch UNF Slot Fillister Head Machine Screw in A2 Stainless
WF89735		 £0.00
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of UNF Fillister Head Slotted Machine Screws ASME B18.6.3
Technical Summary
Standard ASME B18.6.3
all dimensions in inches
html graphic ASME B18.6.3 UNF Slot Fillister Machine Screw Standard HTML
pdf graphic ASME B18.6.3 UNF Slot Fillister Machine Screw Standard PDF
