Self Tapping Screw Torx Countersunk (AB) No.4 x 22mm in A2 Stainless - DIN 7982

Self tapping screws with a Torx drive; also known as star, 6 lobe, and hexalobular internal. Normally used with sheet metal and plastics, this variant has a countersunk head which is typically used in conjunction with a countersunk hole providing a flush, snag free fit. As the name suggests, this type of screw forms its own thread as it is installed into a pre-drilled hole.

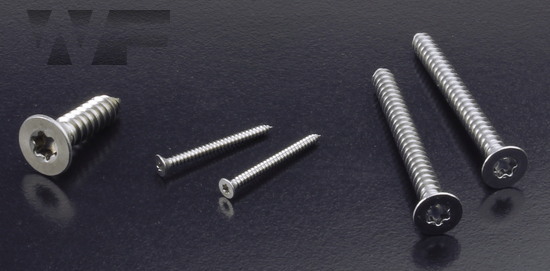

Torx Csk Tapping Screws Type C (AB) in A2 image

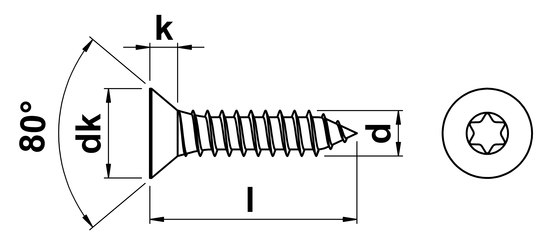

technical drawing of Torx Csk Tapping Screws Type C (AB)
Technical Summary
No. gauge size 4
d thread diameter 2.9
dk head diameter 5.5
k head height 1.7
s drive size T 10
Material A2 Stainless Steel
all dimensions in millimetres (mm)
datasheet
Description Sale Qtys Qty Price Breakdown Despatch Estimate
Self Tapping Screw Torx Countersunk (AB) No.4 x 22mm in A2 Stainless £2.50
Self Tapping Screw Torx Countersunk (AB) No.4 x 22mm in A2 Stainless
£2.50
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of Torx Csk Tapping Screws Type C (AB)
Technical Summary
No. gauge size 4
d thread diameter 2.9
dk head diameter 5.5
k head height 1.7
s drive size T 10
Material A2 Stainless Steel
all dimensions in millimetres (mm)
