Phillips Countersunk Self Tapping Screw (AB) No.10 x 70mm in A2 Stainless - DIN 7982

Self tapping screws are normally used with sheet metal and plastics. This variant has a countersunk head with a phillips pattern drive. The countersunk head is typically used in conjunction with a countersunk hole providing a flush, snag free fit. As the name suggests, this type of screw forms its own thread as it is installed into a pre-drilled hole.

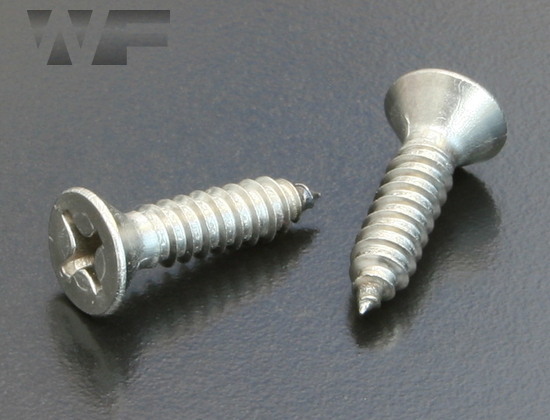

Phillips Csk Tapping Screw ISO 7050 (DIN 7982H) in A2 image

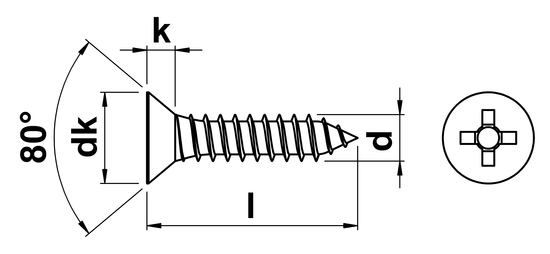

technical drawing of Phillips Csk Tapping Screw ISO 7050 (DIN 7982H)

Technical Summary

No.

gauge size

thread diameter

4.8

head diameter

9.5

head height

3.0

drive size

P 2

Standard

ISO 7050 (DIN 7982H)

Material

A2 Stainless Steel

all dimensions in millimetres (mm)

datasheet

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
Phillips Countersunk Self Tapping Screw (AB) No.10 x 70mm in A2 Stainless			£2.44

Phillips Countersunk Self Tapping Screw (AB) No.10 x 70mm in A2 Stainless

£2.44

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
