Hex Bolt Part Thread M12 x 40mm in A2 Stainless - ISO 4014 (DIN 931)

The most common type of fastener, a hex head bolt is designed to be tightened with a standard spanner or ratchet and socket. Popularly used in all assemblies, a standard hex bolt is a staple across the world. Manufactured to ISO 4014 or DIN 931, and therefore includes an unthreaded section of the shaft. A hex drive permits a greater torque load to be applied to the joint over most other drive types.

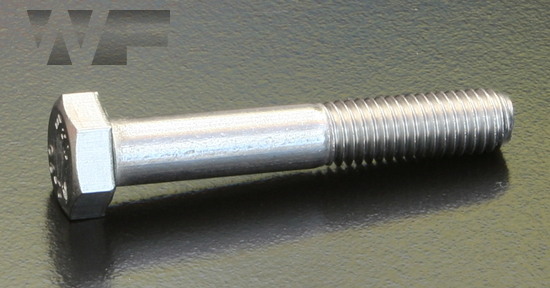

Hex Head Bolts ISO 4014 (DIN 931) in A2 image

technical drawing of Hex Head Bolts ISO 4014 (DIN 931)

Technical Summary

thread diameter

M12

b (l <= 125)

b (l > 125)

drive size

18(19)

k min.

minimum head height

7.32

width across corners

21.10

Standard

ISO 4014 (DIN 931)

Material

A2 Stainless Steel

all dimensions in millimetres (mm)

datasheet

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
Hex Bolt Part Thread M12 x 40mm in A2 Stainless (WF1847)			£3.41

Hex Bolt Part Thread M12 x 40mm in A2 Stainless (WF1847)

£3.41

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
