S Hook Asymmetric Shape in A4 Stainless Steel

Asymmetrical S hooks made in marine grade A4 stainless steel, are strong and hard wearing. These have many uses, for example in marine applications with ropes and wires cable; and as hooks in kitchens, garden sheds and for horticulture.

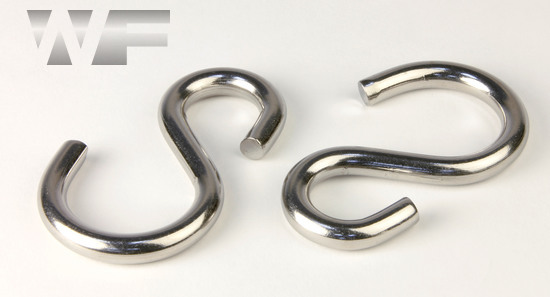

S Hook Asymmetric Shape in A4 image

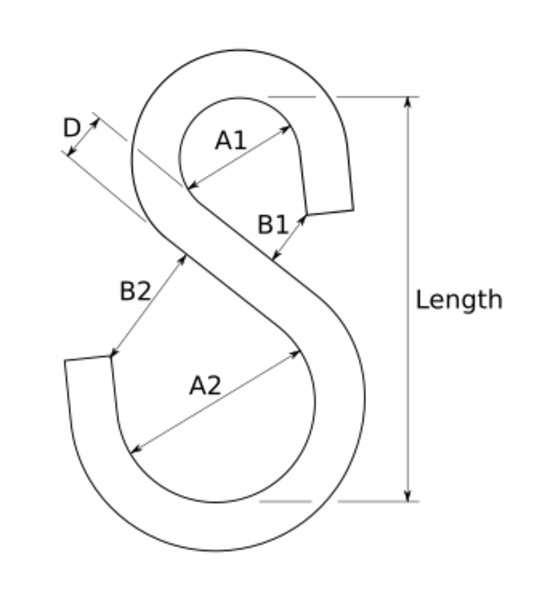

technical drawing of S Hook Asymmetric Shape
Technical Summary
DLengthA1A2B1B2
330916510
4361219612
5431421612
6501525715
8672033920
all dimensions in millimetres (mm)
datasheet
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
