Wire Rope Thimble, Sim. DIN 6899 in A4 Stainless Steel

Rope Thimble - Used to prevent crushing or wearing of rope when it is bent to create an eyelet for connecting or hanging. The thimble shape guides the rope into a natural curve, protecting against deformation and also giving an extra layer of support. Use of thimbles will lengthen life spans of expensive wire ropes and they increase safety. Available in A4 grade stainless steel, ideal for marine usage. Specification similar to DIN 6899.

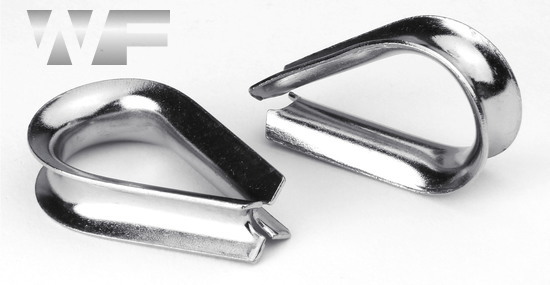

Wire Rope Thimble, Sim. DIN 6899 in A4 image

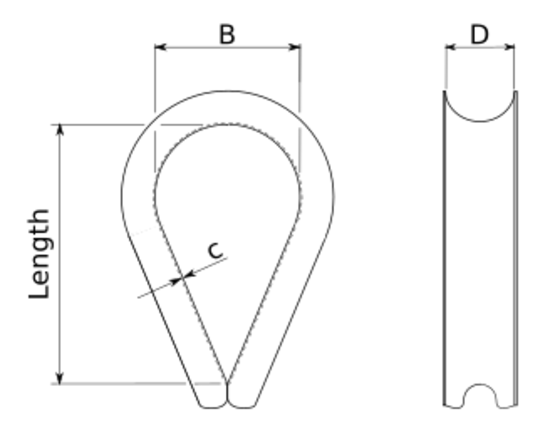

technical drawing of Wire Rope Thimble, Sim. DIN 6899
Technical Summary
for rope diameterDBLengthc
22.57101.0
2.53.08141.0
33.510171.0
44.511181.0
55.613201.2
66.515251.2
89.018331.5
1011.023412.0
1214.027482.0
1415.034532.5
1617.036573.0
1819.040673.0
2022.045754.0
all dimensions in millimetres (mm)
datasheet
Description Sale Qtys Qty Price Breakdown Despatch Estimate
Thimble for 2mm Diameter Rope in A4 Stainless Steel
(WF57872)
£0.00
Thimble for 2.5mm Diameter Rope in A4 Stainless Steel
(WF57873)
£0.00
Thimble for 3mm Diameter Rope in A4 Stainless Steel
(WF57874)
£0.00
Thimble for 4mm Diameter Rope in A4 Stainless Steel
(WF57875)
£0.00
Thimble for 5mm Diameter Rope in A4 Stainless Steel
(WF57876)
£0.00
Thimble for 6mm Diameter Rope in A4 Stainless Steel
(WF57877)
£0.00
Thimble for 8mm Diameter Rope in A4 Stainless Steel
(WF57878)
£0.00
Thimble for 10mm Diameter Rope in A4 Stainless Steel
(WF57879)
£0.00
Thimble for 12mm Diameter Rope in A4 Stainless Steel
(WF57880)
£0.00
Thimble for 14mm Diameter Rope in A4 Stainless Steel
(WF57881)
£0.00
Thimble for 16mm Diameter Rope in A4 Stainless Steel
(WF57882)
£0.00
Thimble for 18mm Diameter Rope in A4 Stainless Steel
(WF57883)
£0.00
Thimble for 20mm Diameter Rope in A4 Stainless Steel
(WF57884)
£0.00
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of Wire Rope Thimble, Sim. DIN 6899
Technical Summary
for rope diameterDBLengthc
22.57101.0
2.53.08141.0
33.510171.0
44.511181.0
55.613201.2
66.515251.2
89.018331.5
1011.023412.0
1214.027482.0
1415.034532.5
1617.036573.0
1819.040673.0
2022.045754.0
all dimensions in millimetres (mm)
