Home   /   Marine Hardware   /   Ring Round and Welded in A4 Stainless Steel

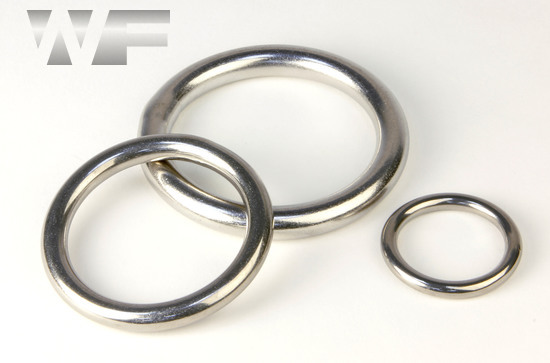

Ring Round and Welded in A4 Stainless Steel

Rings made in marine grade A4 stainless steel are strong and corrosion resistant. These round shaped rings are welded and polished and have many uses, not only for ropes and rigging, but in the home too.
Ring Round and Welded in A4 image

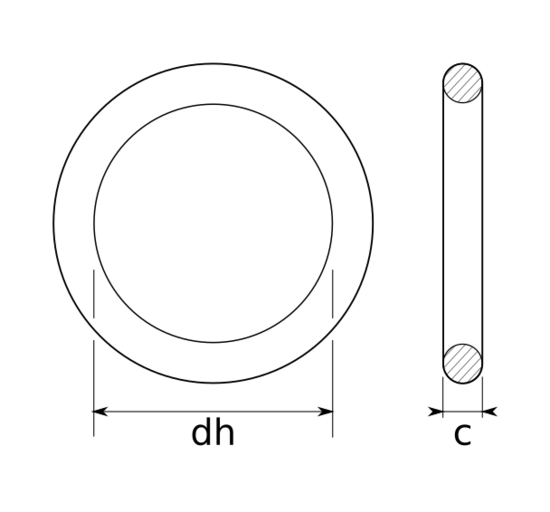

technical drawing of Ring Round and Welded
Technical Summary
sizec (thickness)dh (internal diameter)
3 x 20320
3 x 30330
4 x 25425
4 x 30430
4 x 35435
4 x 40440
5 x 30530
5 x 40540
6 x 35635
6 x 40640
6 x 45645
8 x 40840
8 x 50850
10 x 501050
10 x 601060
12 x 701270
all dimensions in millimetres (mm)
datasheet
Description Sale Qtys Qty Price Breakdown Despatch Estimate
Round Ring Welded 3mm x 15mm in A4 Stainless
(WF58127)
£0.00
Round Ring Welded 3mm x 20mm in A4 Stainless
(WF58128)
£0.00
Round Ring Welded 3mm x 30mm in A4 Stainless
(WF58129)
£0.00
Round Ring Welded 4mm x 25mm in A4 Stainless
(WF58130)
£0.00
Round Ring Welded 4mm x 30mm in A4 Stainless
(WF58131)
£0.00
Round Ring Welded 4mm x 35mm in A4 Stainless
(WF58132)
£0.00
Round Ring Welded 4mm x 40mm in A4 Stainless
(WF58133)
£0.00
Round Ring Welded 5mm x 30mm in A4 Stainless
(WF58134)
£0.00
Round Ring Welded 5mm x 40mm in A4 Stainless
(WF58135)
£0.00
Round Ring Welded 6mm x 35mm in A4 Stainless
(WF58136)
£0.00
Round Ring Welded 6mm x 40mm in A4 Stainless
(WF58137)
£0.00
Round Ring Welded 6mm x 45mm in A4 Stainless
(WF58138)
£0.00
Round Ring Welded 8mm x 40mm in A4 Stainless
(WF58139)
£0.00
Round Ring Welded 8mm x 50mm in A4 Stainless
(WF58140)
£0.00
Round Ring Welded 10mm x 50mm in A4 Stainless
(WF58141)
£0.00
Round Ring Welded 10mm x 60mm in A4 Stainless
(WF58142)
£0.00
Round Ring Welded 12mm x 70mm in A4 Stainless
(WF58143)
£0.00
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of Ring Round and Welded
Technical Summary
sizec (thickness)dh (internal diameter)
3 x 20320
3 x 30330
4 x 25425
4 x 30430
4 x 35435
4 x 40440
5 x 30530
5 x 40540
6 x 35635
6 x 40640
6 x 45645
8 x 40840
8 x 50850
10 x 501050
10 x 601060
12 x 701270
all dimensions in millimetres (mm)
datasheet
