Home   /   Marine Hardware   /   Swivel Shackle with Hex Drive in A4 Stainless Steel

Swivel Shackle with Hex Drive in A4 Stainless Steel

Swivel shackle with a fork/jaw on both ends (anchor swivel jaw jaw), are designed to prevent any twisting, knotting and snagging on a line or chain. Any twists in a rope or chain could start kinking that would reduce the effectiveness and cause damage. Swivel shackles with a jaw at each end allows them to be connected to a pre-existing system of ropes or chains. The jaws, have a shackle style opening, with a threaded pin, which allows the jaw to open. The shackle ends spin on a central pin which the nuts are welded to. These A4 marine grade stainless steel swivel shackles are strong and durable. This type of swivel shackle has a hex/socket drive on the jaw pins.

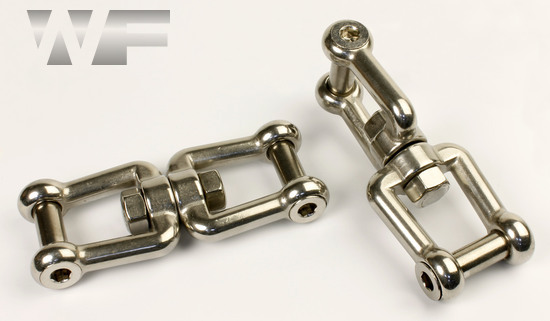

Swivel Shackle with Hex Drive in A4 image

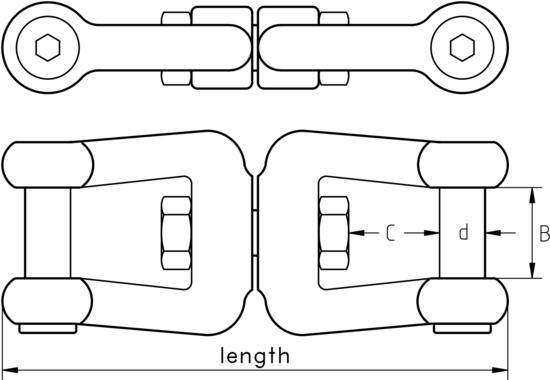

technical drawing of Swivel Shackle with Hex Drive
Technical Summary
dLengthBCBreaking Load(kg)Working Load(kg)
6661212935235
89416161660415
1011820222590648
1315226283730930
all dimensions in millimetres (mm)
html graphic Swivel Shackle with Hex Forks Guide HTML
pdf graphic Swivel Shackle with Hex Forks Guide PDF
< View All Marine Hardware
Description Sale Qtys Qty Price Breakdown Despatch Estimate
6mm Swivel Shackle 2 Forks with Hex Socket in A4 Stainless
WF77403 - 80 in stock
single for £2.57
or box of 8 for £19.62
or bulk of 40 for £92.48
£0.00
8mm Swivel Shackle 2 Forks with Hex Socket in A4 Stainless
WF77404 - expected in 16 to 24 days
single for £3.99
or box of 3 for £11.64
or bulk of 15 for £55.23
£0.00
10mm Swivel Shackle 2 Forks with Hex Socket in A4 Stainless
WF77405 - 20 in stock
single for £9.82
or box of 2 for £19.48
or bulk of 10 for £90.92
£0.00
13mm Swivel Shackle 2 Forks with Hex Socket in A4 Stainless
WF77406 - 5 in stock
single for £16.06 £0.00
single for £2.57
or box of 8 for £19.62
or bulk of 40 for £92.48
£0.00

single for £3.99
or box of 3 for £11.64
or bulk of 15 for £55.23
£0.00

single for £9.82
or box of 2 for £19.48
or bulk of 10 for £90.92
£0.00

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of Swivel Shackle with Hex Drive
Technical Summary
dLengthBCBreaking Load(kg)Working Load(kg)
6661212935235
89416161660415
1011820222590648
1315226283730930
all dimensions in millimetres (mm)
html graphic Swivel Shackle with Hex Forks Guide HTML
pdf graphic Swivel Shackle with Hex Forks Guide PDF
