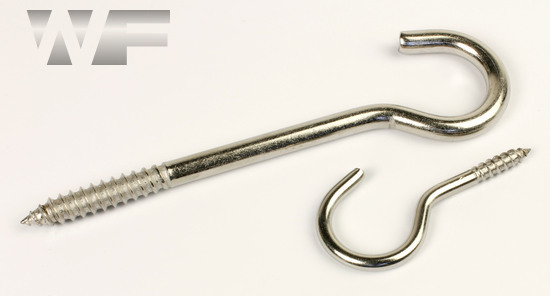

Cup Hook with Wood Thread in A2 Stainless Steel

These Cup hooks, also known as M hooks, are made from A2 or 304 stainless steel and are useful for a multitude of jobs, both inside and outdoors. With their sharp point and woodscrew end, the cup hooks can be turned straight into wood and can also be used in masonry and concrete when employed with a wall plug. When used with hard woods, a pilot hole will help the cup hook get a grip into the wood. This pilot hole can be made with a bradawl or a small drill bit.
Cup Hook with Wood Thread in A2 image

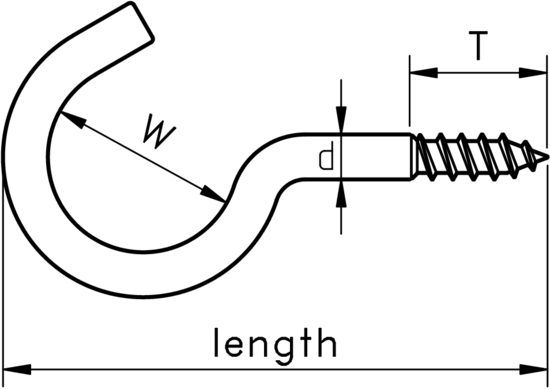

technical drawing of Cup Hook with Wood Thread
Technical Summary
dlengthTW
3.3401014
3.5501217
3.5601520
4.0501616
4.4651622
5.2802127
6.01002825
all dimensions in millimetres (mm)
html graphic Cup Hook with Wood Thread Guide HTML
pdf graphic Cup Hook with Wood Thread Guide PDF
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of Cup Hook with Wood Thread
Technical Summary
dlengthTW
3.3401014
3.5501217
3.5601520
4.0501616
4.4651622
5.2802127
6.01002825
all dimensions in millimetres (mm)
html graphic Cup Hook with Wood Thread Guide HTML
pdf graphic Cup Hook with Wood Thread Guide PDF
