Dowel Pin (DIN 7) 12 in A1 Stainless Steel

Our stock of Dowel Pins are short cylindrical sections of metal cut from a Dowel Bar. For use in aligning machinery parts correctly and often as reference points for mechanical engineers to ensure repeatable and accurate assemblies.

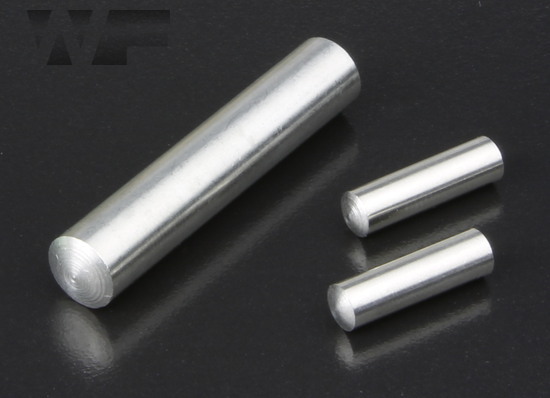

Dowel Pin (DIN 7) in A1 image

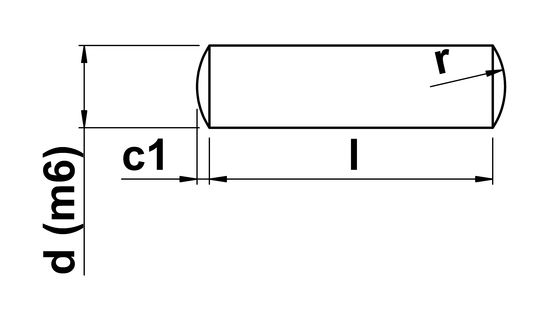

technical drawing of Dowel Pin (DIN 7)
Technical Summary
d nominal diameter 12
C dimension 1.80
r radius 12.0
Standard DIN 7
Material A1 Stainless Steel
all dimensions in millimetres (mm)
datasheet
Description Sale Qtys Qty Price Breakdown Despatch Estimate
Parallel Pin (Dowel Pin) 12 x 18mm in A1 Stainless Steel
(WF49214)
£0.00
Parallel Pin (Dowel Pin) 12 x 20mm in A1 Stainless Steel
(WF49215)
£0.00
Parallel Pin (Dowel Pin) 12 x 24mm in A1 Stainless Steel
(WF49216)
£0.00
Parallel Pin (Dowel Pin) 12 x 28mm in A1 Stainless Steel
(WF49217)
£0.00
Parallel Pin (Dowel Pin) 12 x 32mm in A1 Stainless Steel
(WF49218)
£0.00
Parallel Pin (Dowel Pin) 12 x 36mm in A1 Stainless Steel
(WF49219)
£0.00
Parallel Pin (Dowel Pin) 12 x 40mm in A1 Stainless Steel
(WF49220)
£0.00
Parallel Pin (Dowel Pin) 12 x 45mm in A1 Stainless Steel
(WF49261)
£0.00
Parallel Pin (Dowel Pin) 12 x 50mm in A1 Stainless Steel
(WF49262)
£0.00
Parallel Pin (Dowel Pin) 12 x 60mm in A1 Stainless Steel
(WF49263)
£0.00
Parallel Pin (Dowel Pin) 12 x 70mm in A1 Stainless Steel
(WF49264)
£0.00
Parallel Pin (Dowel Pin) 12 x 80mm in A1 Stainless Steel
(WF49265)
£0.00
Parallel Pin (Dowel Pin) 12 x 90mm in A1 Stainless Steel
(WF49266)
£0.00
Parallel Pin (Dowel Pin) 12 x 100mm in A1 Stainless Steel
(WF49213)
£0.00
Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
technical drawing of Dowel Pin (DIN 7)
Technical Summary
d nominal diameter 12
C dimension 1.80
r radius 12.0
Standard DIN 7
Material A1 Stainless Steel
all dimensions in millimetres (mm)
