Self Tapping Screw Torx Pan (AB) No.6 x 6.5mm in A2 Stainless - DIN 7981

Self tapping screws with a Torx drive; also known as star, 6 lobe, and hexalobular internal. Normally used with sheet metal and plastics, this variant has a pan head. As the name suggests, this type of screw forms its own thread as it is installed into a pre-drilled hole.

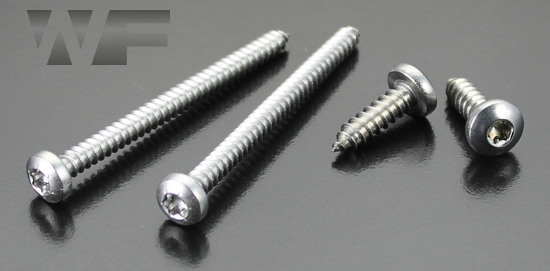

Torx Pan Head Tapping Screws Type C (AB) in A2 image

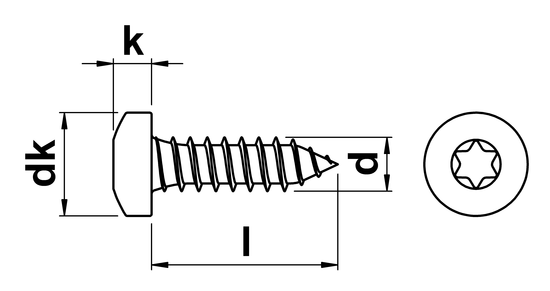

technical drawing of Torx Pan Head Tapping Screws Type C (AB)

Technical Summary

No.

gauge size

thread diameter

3.5

head diameter

6.9

k max.

maximum head height

2.60

drive size

T 15

Material

A2 Stainless Steel

all dimensions in millimetres (mm)

datasheet

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
Self Tapping Screw Torx Pan (AB) No.6 x 6.5mm in A2 Stainless			£2.36

Self Tapping Screw Torx Pan (AB) No.6 x 6.5mm in A2 Stainless

£2.36

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
