Pozi Pan Flange Self Tapping Screw (AB) No.6 x 8mm in Zinc Plated Steel - BS 4174

Self tapping screws are normally used with sheet metal and plastics. This variant has a pan head with a pozi pattern drive and incorporates a flange under the head which can negate the use of a washer and helps protect the receiving material surface. As the name suggests, this type of screw forms its own thread as it is installed into a pre-drilled hole

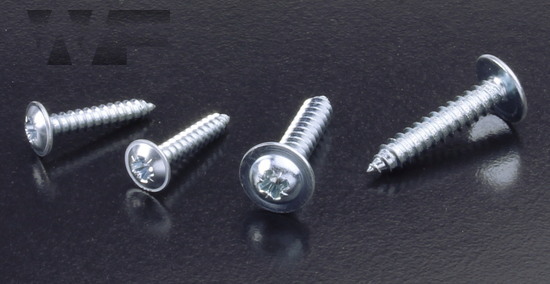

Pozi Pan Head Self Tapping Screw with Flange in BZP image

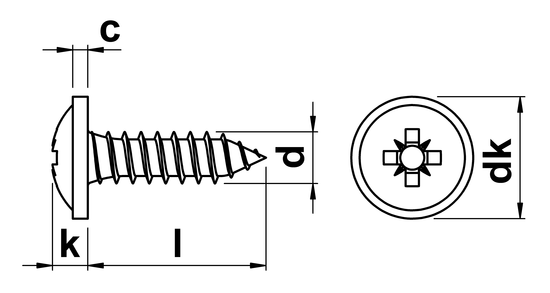

technical drawing of Pozi Pan Head Self Tapping Screw with Flange

Technical Summary

No.

gauge size

d max.

maximum diameter

3.53

d min.

minimum diameter

3.43

dk max.

maximum head diameter

8.15

dk min.

minimum head diameter

7.70

k max.

maximum head height

1.88

k min.

minimum head height

1.57

drive size

PZ 2

Material

Bright Zinc Plated (BZP) Steel

all dimensions in millimetres (mm)

datasheet

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
Pozi Pan Flange Self Tapping Screw (AB) No.6 x 8mm in Zinc Plated Steel			£9.92

Pozi Pan Flange Self Tapping Screw (AB) No.6 x 8mm in Zinc Plated Steel

£9.92

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
