Phillips Pan Self Tapping Screw (AB) No.6 x 60mm in A2 Stainless - DIN 7981

Self tapping screws are normally used with sheet metal and plastics. This variant has a pan head with a phillips pattern drive. As the name suggests, this type of screw forms its own thread as it is installed into a pre-drilled hole.

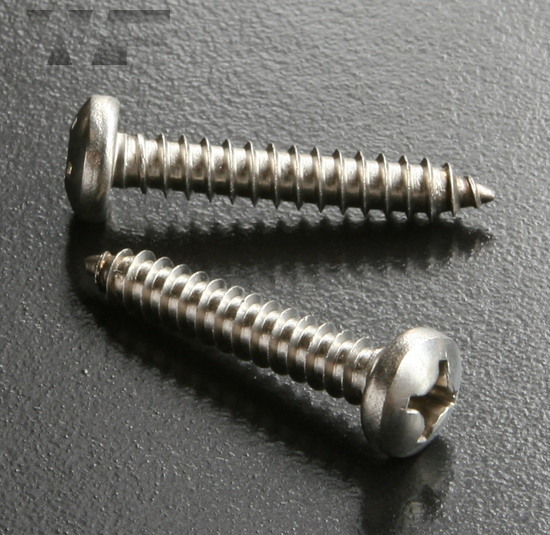

Phillips Pan Head Tapping Screws Type C (AB) ISO 7049 (DIN 7981H) in A2 image

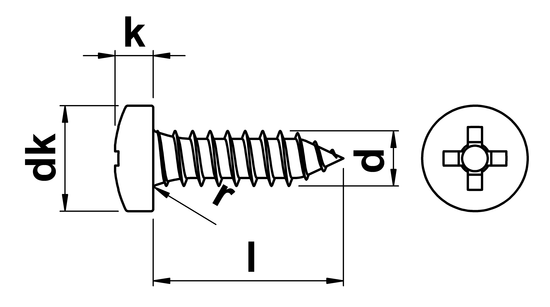

technical drawing of Phillips Pan Head Tapping Screws Type C (AB) ISO 7049 (DIN 7981H)

Technical Summary

No.

gauge size

thread diameter

3.5

head diameter

6.9

k min.

minimum head height

2.35

k max.

maximum head height

2.60

r max.

maximum radius

0.5

drive size

P 2

Standard

ISO 7049 (DIN 7981H)

Material

A2 Stainless Steel

all dimensions in millimetres (mm)

datasheet

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
Phillips Pan Self Tapping Screw (AB) No.6 x 60mm in A2 Stainless			£2.74

Phillips Pan Self Tapping Screw (AB) No.6 x 60mm in A2 Stainless

£2.74

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
