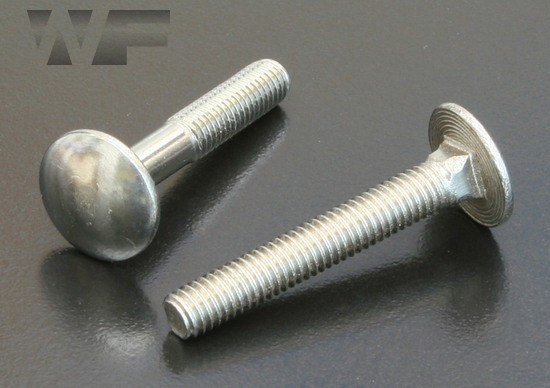

Coach / Carriage Bolt M10 x 260mm in A2 Stainless - ISO 8677 (DIN 603-555)

Generally used in timber to timber and timber to metal construction, these bolts incorporate a square neck to grip the hole in the timber when fitting, and therefore negates the need for any drive recess to be included on top of the head. Supplied to DIN 603. Usually manufactured with a full thread, though occasionally some stock may include a partially threaded shank, particularly on longer lengths.

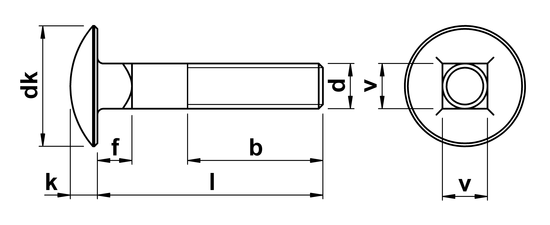

technical drawing of Carriage Bolts DIN 603

Technical Summary

thread diameter

M10

dk min.

minimum head diameter

23.35

f min.

minimum dome height

5.40

k min.

minimum head height

4.62

v min.

minimum head cylinder height

9.42

b <= 125

thread (bolt lengths <= 125)

b > 125

thread (bolt lengths > 125)

Standard

ISO 8677 (DIN 603)

Material

A2 Stainless Steel

all dimensions in millimetres (mm)

datasheet

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
Coach / Carriage Bolt M10 x 260mm in A2 Stainless			£6.66

Coach / Carriage Bolt M10 x 260mm in A2 Stainless

£6.66

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
