Westfield Fasteners Product Specification:

Rivet Nuts - Flat Head with Knurled Shank, Open Type

This product guide contains the specification for rivet nuts with a flat head, a round knurled shank and an open end. These are a stock item available from Westfield Fasteners.

Product Description

Rivet nuts are an alternative to weld nuts, and are used for attaching a threaded hole into sheet metals and thin metal gauge parts, such as panels, tubes and castings. The riveted nut will then allow you to attach and detach mating components easily using the correct sized bolts. The larger sized rivet nuts can clamp together multiple layers of sheet materials.

Blind rivet nuts are installed by inserting the rivet nuts into the correctly sized and shaped hole within the sheet material. The rivet nut is compressed using a pneumatic powered or hand rivet nut tool, gripping it firmly to the sheet material. In the compression process, the thinner walled section without the thread collapses to form a collar on the blind side of the sheet material. This prevents the nut from being pulled back through the hole and fixes it securely to the sheet material. Like blind rivets, rivet nuts do not require access to the back of the material. Features like knurling or the hexagonal shaped body within a hexagonal shaped hole will help prevent the rivet nut from turning.

Rivet nuts with a flat head and a round knurled shank feature a flat head, a round knurled shank and an open end, which is a more common type of rivet nut. The larger diameter of the flat head will spread the load over a greater surface area, making them appropriate for most applications, including connecting soft or brittle materials to a rigid backing. The knurling/serrations will help to grip the nut to the connecting materials and stop it turning. The open end allows a bolt of any length to be used with the rivet nut, making it more vibration resistant. This type of rivet nut is used in a multitude of industries such as aerospace, automotive, rail, HVAC, white goods, electronics, DIY and general engineering.

Product Information

These Rivet Nuts are available in A2 and A4 stainless steel, zinc plated steel, and aluminium. Seperate tables by material are provided below and should be referred to together with figure 1.

Table 1 below gives dimensions for stainless steel variants in available sizes from M3 to M12, along with information on sheet material thickness, pre-drilled hole sizes and tensile strengths. Table 2 provides similar information for zinc plated steel items.

Please note that the table data below supplies typical strength values, head dimensions, and overall length, which may vary between batches. Any tightening torque specifications given are guide values depending on the material of the original component and should be checked by testing.

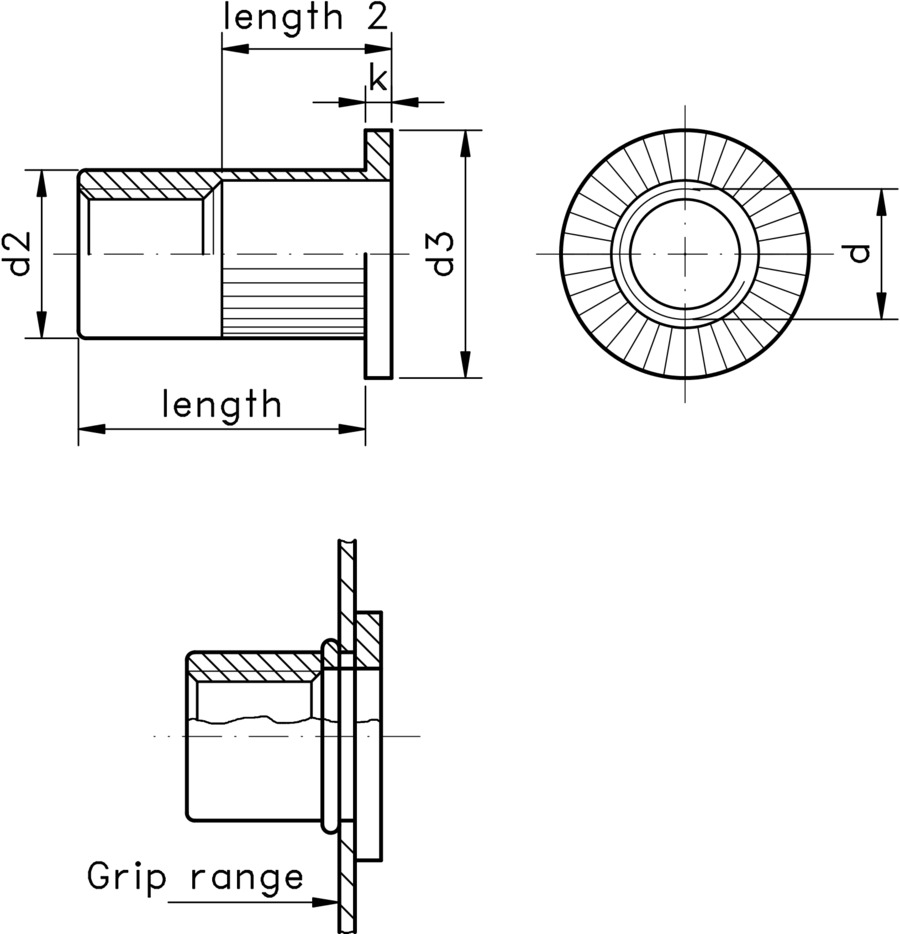

Figure 1: Rivet nuts with flat head, knurled shank and an open end
