Westfield Fasteners Product Specification:

DIN 835 - Engineering Studs with Thread Engagement 2 x Thread Diameter

This product guide contains the specification for Double Ended Engineers Studs with a length of engagement equal to 2 x thread diameter. These studs are a stock item available from Westfield Fasteners.

Product Description

Studs are short sections of metal rod threaded at both ends, with a plain shank inbetween. The thread proportion at the 'stud end' varies between standards, but this type, DIN 835, specifies this length at 2 x the thread diameter. The stud end is designed to be screwed into a tapped hole, whilst the 'nut end' of the stud is used for securing the mating part with a nut.

A stud as part of an assembly has a couple of advantages over bolts, being helpful in initially locating the components and from there making it easier to apply an accurate amount of torque. Engineering studs are also known as engineers studs, and double ended studs, to help differentiate them from the fully threaded type.

Scope of the DIN Standard

DIN 835 defines these stud's form, with figure 1 and table 1 below of this specification showing the key dimensions and tolerances for sizes M4 to M24. Non preferred threads are listed in brackets in table 1. Non preferred thread sizes are not generally recommended for new applications.

The DIN standard includes metric fine pitch threads, but if these become available they would be covered in a seperate specification.

The ends of these studs conform to DIN 78 for K type (chamfered) thread ends. The thread tolerance for the stud end is Sk6, whilst the nut end is 6g.

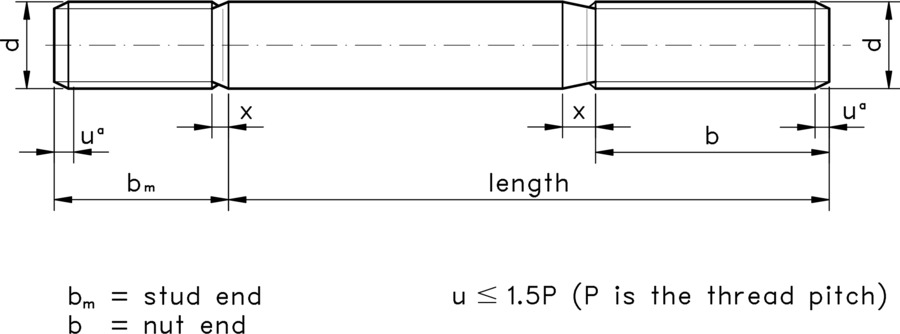

technical drawing of a stud with a length of engagement equal to about 2 x diameter

Thread Size, d	Thread Pitch	Thread Length, b_m	Thread Length, b			Thread Diameter Tol, d_s		Transition, x
Thread Size, d	Thread Pitch	Thread Length, b_m	a	b	c	max.	min.	Transition, x
M4	0.70	8	14	20	-	4	3.82	1.75
M5	0.80	10	16	22	-	5	4.82	2.0
M6	1.00	12	18	24	-	6	5.82	2.5
(M7)	1.00	14	20	26	-	7	6.78	2.5
M8	1.25	16	22	28	-	8	7.78	3.2
M10	1.50	20	26	32	45	10	9.78	3.8
M12	1.75	24	30	36	49	12	11.73	4.3
(M14)	2.00	28	34	40	53	14	13.73	5.0
M16	2.00	32	38	44	57	16	15.73	5.0
(M18)	2.50	36	42	48	61	18	17.73	6.3
M20	2.50	40	46	52	65	20	19.67	6.3
(M22)	2.50	44	50	56	69	22	21.67	6.3
M24	3.00	48	54	60	73	24	23.67	7.5

DIN 835 - Engineering Studs with Thread Engagement 2 x Thread Diameter

Figure 1: Engineers Stud to DIN 835

Table 1: Dimensions & Tolerances according to DIN 835 (mm)

Notes, Thread Length b
