Westfield Fasteners Product Specification:

DIN 3570 - U Bolts

This product guide contains the specification for U Bolts, a series of standard parts available from Westfield Fasteners. The basis of this specification is the internationally recognised DIN standard DIN 3570.

Product Description

U-Bolts are designed to hold and support pipes and cables. They are also known as pipe clamps, tube bolts and U clamps. They are commonly used for TV aerials, satellite dishes, masts, trailers, plumbing and marine applications. The size of the U bolt required depends on the diameter of the pipe and the length of the threaded ends needed. These U bolts are sold without the nuts and washers as shown in figure 1, but these are available seperately.

Scope of the DIN Standard

DIN 3570 specifies the dimensions for U bolts for nominal widths of pipes between 20 and 500 mm, and includes thread diameters from M10 up to M24. We are currently able to source variants from the standard in M10 and M12 only. We also stock sizes with an M8 thread. These do not form part of this standard, but follow a similar logic in terms of sizing. Please see the table 1 below for all sizes listed to DIN 3570 together with non-standard sizes available similar to this specification.

a	For use with Tubes of			b	d₂	d₃	e	h
a	d₁	Nominal Width		b	d₂	d₃	e	h
23*	-	-	-	20	7.10	M8	31.0	38
28*	-	-	-	20			36.0	46
35*	-	-	-	25			43.0	50
42*	-	-	-	30			50.0	60
35*	-	-	-	35			43.0	80
65*	-	-	-	50			73.0	110
82*	-	-	-	50			90.0	120
23*	-	-	1/2"	33	10	M10	-	65
30	25	20	3/4"	40	10	M10	40	70
30	26.9	20	3/4"				40	70
38	30	25	1"				48	76
38	33.7	25	1"				48	76
46	38	32	1 1/4"	50			56	86
46	42.4	32	1 1/4"				56	86
52	44.5	40	1 1/2"				62	92
52	48.3	40	1 1/2"				62	92
64	57	50	2"		12	M12	76	109
64	60.3	50	2"				76	109
82	76.1	65	2 1/2"				94	125
94	88.9	80	3"				106	138
120	108	100	4"	60	16	M16	136	171
120	114.3	100	4"				136	171
148	133	125	-				164	191
148	139.7	125	-				164	191
176	159	150	-				192	217
176	168.3	150	-				192	217
202	191	175	-				218	249
202	193.7	175	-				218	249
228	216	200	-	70	20	M20	248	283
228	219.1	200	-				248	283
282	267	250	-				302	334
282	273	250	-				302	334
332	318	300	-				352	385
332	323.9	300	-				352	385
378	355.6	350	-		24	M24	402	435
378	368	350	-				402	435
428	406.4	400	-				452	487
428	419	400	-				452	487
530	508	500	-				554	589
530	521	500	-				554	589

DIN 3570 - U Bolts

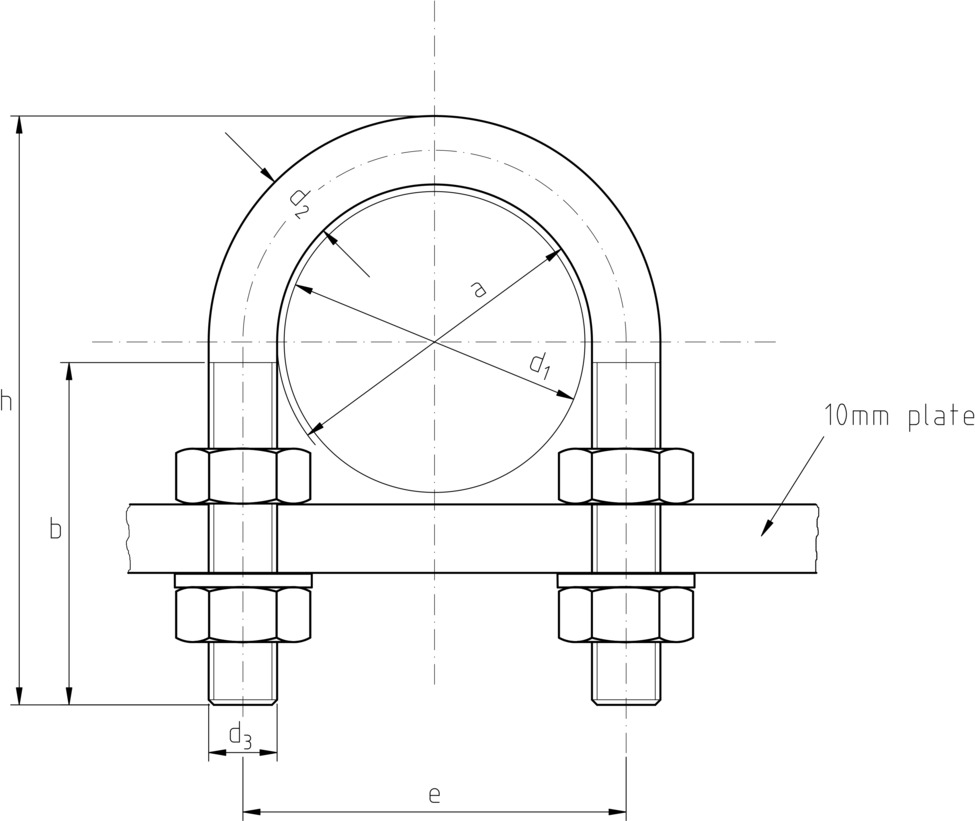

Figure 1: U Bolts

Table 1: Dimensions and Tolerances according to DIN 3570. Table includes non standard sizes.
