Westfield Fasteners Product Specification:

Screw Eye with Metric Thread

This product guide contains the specification for metric threaded screw eyes, a series of standard parts available from Westfield Fasteners.

Product Description

An eye bolt with an unwelded slightly open eye and a machine thread, for use with a nut and other threaded components. Generally used for suspending cable, wire and chains and marine applications.

d	4				5				6					8						10
Length	10	20	30	40	20	30	40	50	20	30	40	50	60	30	40	50	60	70	80	70
b	9	18	27	37	18	27	37	47	18	27	37	47	57	27	37	47	57	67	77	65
d2	3.5				4.4				5.25					7.05						8.85
d3	6				8				10					12						15

Screw Eye with Metric Thread

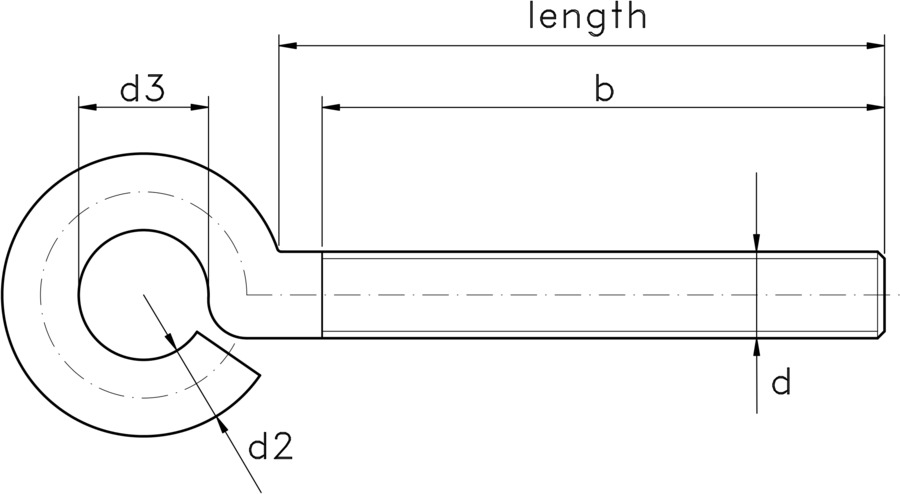

Figure 1: Screw Eye with Metric Thread

Table 1: Dimensions & Tolerances (mm)
