Westfield Fasteners Product Specification:

Torx Pan Head Chipboard Screws

This product guide contains the specification for Torx Pan Head Chipboard Screws, a series of standard parts available from Westfield Fasteners.

Product Description

Multi-purpose torx drive pan head chipboard screws. Torx drive is also known as a star, 6-lobe or hexalobular socket drive. The torx socket shape is engineered to allow more torque to be applied to the screw with less chance of the drive slipping out of the socket. Torx drive screws are designed for use with modern power tools where the clutch can be adjusted to slip where required. Please note that these screws are available in a full or partial thread.

Thread Diameter, d	Head Diameter, dk	Head Height, k	TX Drive
3	6	2.5	T 10
3.5	7	2.6	T 10
4	8	3	T 20
4.5	9	3.1	T 20
5	10	3.7	T 25
6	12	4.7	T 25

Torx Pan Head Chipboard Screws

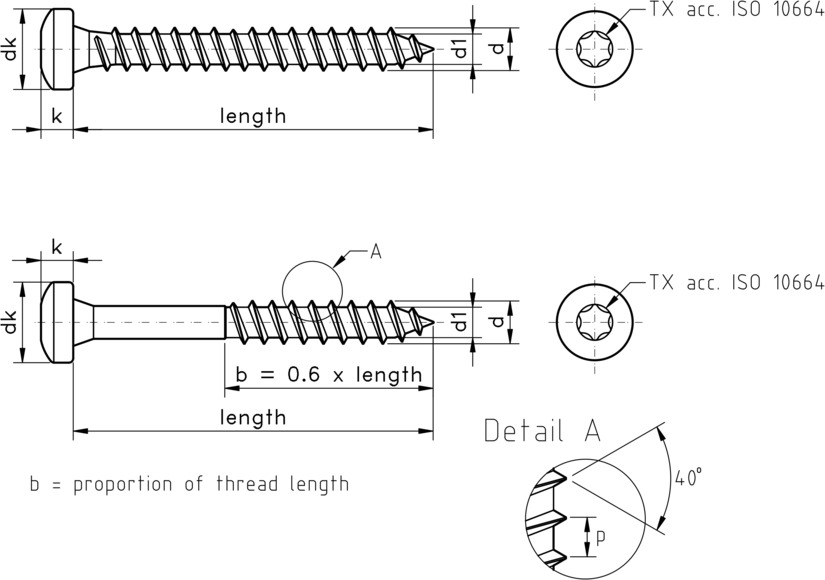

Figure 1: Torx Pan Head Chipboard Screw

Table 1: Dimensions for Torx Pan Chipboard Screws (mm)
