Westfield Fasteners Product Specification:

Dome Head Peel Type Blind Rivets

This product guide contains the specification for dome head peel type blind rivets. These items form part of the Westfield Fasteners range of blind or pop rivet products.

Product Description
Dome head peel type blind rivets are designed to be used with soft or low resistance materials and are ideal for connecting soft materials to harder materials. Use with plastics, rubber, laminates, wood, GRP, plasterboard and sheet metals. As the rivet is compressed to secure the fixing, the body of the rivet splits into 4 and curls down to grip into the surface, giving a wide bearing area.

Blind rivets can be also known as breakstem rivets.
Product Information
Aluminium bodied rivets include a zinc plated steel mandrel. Blind rivets are designed to be fitted with a rivet plier or rivet lever type tool.

The data in the table below is provided to assist with installation of these blind rivets. Table 1 defines the overall dimensions and tolerances of this fastener type, and includes shear and tensile strengths, and offers a nominal size for the holes to to be used.

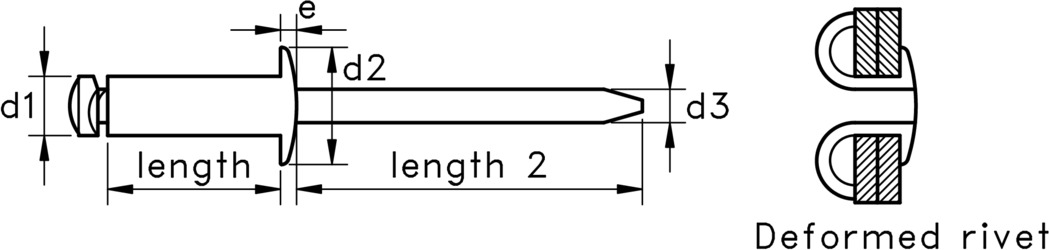

technical drawing of a Dome Head Peel Blind Rivet

Figure 1: Dome Head Peel Type Blind Rivet













Table 1: Peel Type Blind Rivet Dimensions & Tolerances (mm)

Nominal Diameter (d1)LengthGrip RangeHole SizeFlange Diameter (d2)Flange Thickness (e)Nom. Mandrel Diameter (d3)Length 2Shear Strength, NewtonsTensile Strength, Newtons
3.28.00.5 - 1.03.5 - 3.76.00.81.9026.0765700
10.01.0 - 3.0
12.03.0 - 5.0
16.07.0 - 9.0
4.010.01.5 - 4.54.3 - 4.581.22.3027.012601150
12.04.0 - 6.5
14.05.0 - 8.5
16.08.0 - 10.5
18.010.0 - 12.5
20.012.0 - 14.5
4.810.00.5 - 4.05.1 - 5.39.51.32.6028.024002200
12.02.0 - 6.0
14.04.0 - 8.0
16.06.0 - 9.5
18.08.0 - 11.0
20.010.0 - 14.0
22.012.0 - 16.0
25.016.0 - 19.0
30.019.0 - 24.0
35.024.0 - 28.0
