M3 Hex Head Thread Rolling Screws, Similar to DIN 7500 in Bright Zinc Plated (BZP) Steel

Thread rolling screws are designed to tap their own threads into pre-drilled holes in light metals and steel. The triangular shaped tip design allows the thread rolling screw to cold form the female thread into the work piece, so there is no need to pre tap the hole. Thread rolling screws are defined in DIN 7500, but this standard does not mention this head type exactly, but this item conforms in every other respect.

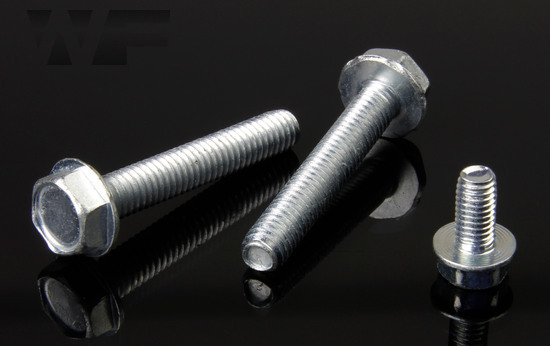

Hex Head Thread Rolling Screws, Similar to DIN 7500 in BZP image

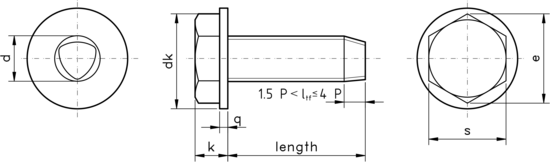

technical drawing of Hex Head Thread Rolling Screws, Similar to DIN 7500

Technical Summary

nominal diameter

head diameter

head height

2.1

thickness

0.6

width across corners

5.9

drive size

5.5

Standard

DIN 7500

all dimensions in millimetres (mm)

				DIN 7500 Standard HTML
				DIN 7500 Standard PDF

< View All Sizes

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
M3 x 6mm Hex Head Flange Thread Rolling Screw in BZP WF67366			£0.00
M3 x 8mm Hex Head Flange Thread Rolling Screw in BZP WF67367			£0.00
M3 x 10mm Hex Head Flange Thread Rolling Screw in BZP WF67368			£0.00
M3 x 12mm Hex Head Flange Thread Rolling Screw in BZP WF67369			£0.00

M3 x 6mm Hex Head Flange Thread Rolling Screw in BZP
WF67366

M3 x 8mm Hex Head Flange Thread Rolling Screw in BZP
WF67367

M3 x 10mm Hex Head Flange Thread Rolling Screw in BZP
WF67368

M3 x 12mm Hex Head Flange Thread Rolling Screw in BZP
WF67369

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
