Carbine Hook Symmetrical Shape with Thimble in A4 Stainless Steel

Carbine Hook Symmetric Shape with Thimble - also referred to as a Snap Hook, Carabiner Hook, Carbine Clip or Spring Hook. Ideal for use in many Yachting/Boating applications such as rigging and roping; also used to attach objects to loops, eyes or thimbles. This version has a Thimble already fitted to allow for easy passage of rope. Manufactured in A4 grade Stainless Steel for excellent anti-corrosive properties. Please note that the spring itself is in A2 grade stainless.

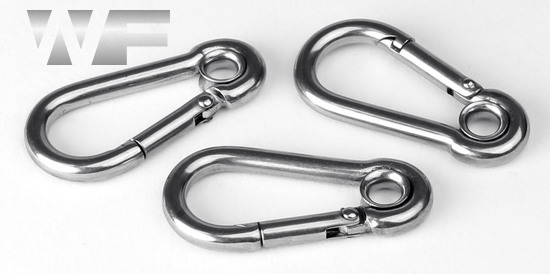

Carbine Hook Symmetrical Shape with Thimble in A4 image

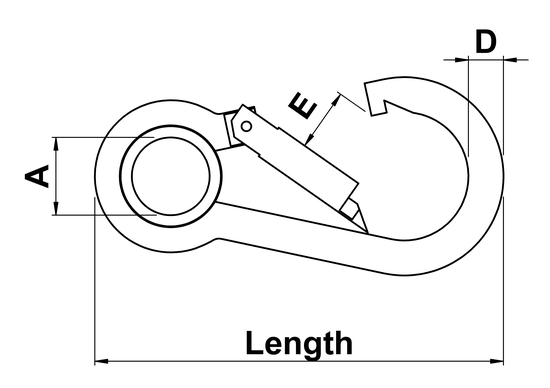

technical drawing of Carbine Hook Symmetrical Shape with Thimble

Technical Summary

Size

Length

Safety Working Load (SWL) kg

Min Breaking Load (BL) kN

4 x 40

4.5

2.3

5 x 50

6.5

3.4

6 x 60

8.5

130

5.1

7 x 70

9.5

160

6.3

8 x 80

200

7.8

10 x 100

100

300

11.8

11 x 120

120

17.5

350

13.9

12 x 140

140

19.5

420

16.5

all dimensions in millimetres (mm)

datasheet

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
4mm x 40mm Carbine Hook Symmetrical with Thimble in A4 Stainless WF57977			£0.00
5mm x 50mm Carbine Hook Symmetrical with Thimble in A4 Stainless WF57978			£0.00
6mm x 60mm Carbine Hook Symmetrical with Thimble in A4 Stainless WF57979			£0.00
7mm x 70mm Carbine Hook Symmetrical with Thimble in A4 Stainless WF57980			£0.00
8mm x 80mm Carbine Hook Symmetrical with Thimble in A4 Stainless WF57981			£0.00
10mm x 100mm Carbine Hook Symmetrical with Thimble in A4 Stainless WF57982			£0.00
11mm x 120mm Carbine Hook Symmetrical with Thimble in A4 Stainless WF57983			£0.00
12mm x 140mm Carbine Hook Symmetrical with Thimble in A4 Stainless WF57984			£0.00

4mm x 40mm Carbine Hook Symmetrical with Thimble in A4 Stainless
WF57977

5mm x 50mm Carbine Hook Symmetrical with Thimble in A4 Stainless
WF57978

6mm x 60mm Carbine Hook Symmetrical with Thimble in A4 Stainless
WF57979

7mm x 70mm Carbine Hook Symmetrical with Thimble in A4 Stainless
WF57980

8mm x 80mm Carbine Hook Symmetrical with Thimble in A4 Stainless
WF57981

10mm x 100mm Carbine Hook Symmetrical with Thimble in A4 Stainless
WF57982

11mm x 120mm Carbine Hook Symmetrical with Thimble in A4 Stainless
WF57983

12mm x 140mm Carbine Hook Symmetrical with Thimble in A4 Stainless
WF57984

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
