Carbine Hook Symmetrical Shape with Thimble and Locking Nut in A4 Stainless Steel

Carbine Hook Symmetric Shape with Thimble and Locking Nut - also referred to as a Snap Hook, Carabiner Hook, Carbine Clip or Spring Hook. Ideal for use in many Yachting/Boating applications such as rigging and roping; also used to attach objects to loops, eyes or thimbles. This version has a Thimble already fitted to allow for easy passage of rope and a Locking Nut for added security. Manufactured in A4 grade Stainless Steel for excellent anti-corrosive properties. Please note that the spring itself is in A2 grade stainless.

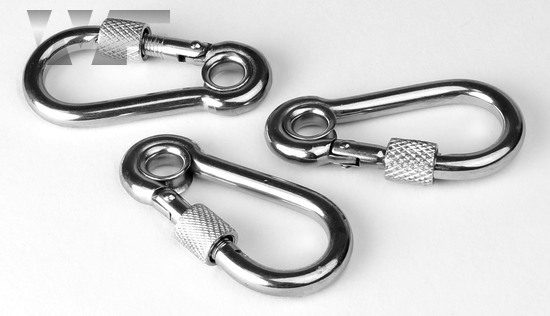

Carbine Hook Symmetrical Shape with Thimble and Locking Nut in A4 image

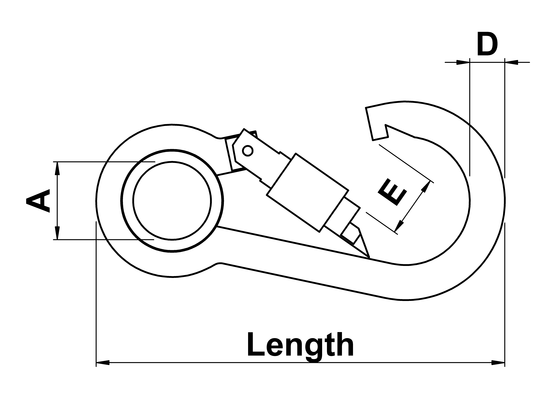

technical drawing of Carbine Hook Symmetrical Shape with Thimble and Locking Nut

Technical Summary

Size

Length

Safe Working Load(SWL) kg

Min Breaking Load(BL) kN

6 x 60

130

5.1

8 x 80

195

7.8

10 x 100

100

300

11.8

11 x 120

120

355

13.9

all dimensions in millimetres (mm)

datasheet

Description	Sale Qtys	Qty	Price	Breakdown	Despatch Estimate
5mm x 50mm Carbine Hook Symmetrical with Safety Nut and Thimble in A4 Stainless WF57968			£0.00
6mm x 60mm Carbine Hook Symmetrical with Safety Nut and Thimble in A4 Stainless WF57969			£0.00
8mm x 80mm Carbine Hook Symmetrical with Safety Nut and Thimble in A4 Stainless WF57970			£0.00
10mm x 100mm Carbine Hook Symmetrical with Safety Nut and Thimble in A4 Stainless WF57971			£0.00
11mm x 120mm Carbine Hook Symmetrical with Safety Nut and Thimble in A4 Stainless WF57972			£0.00

5mm x 50mm Carbine Hook Symmetrical with Safety Nut and Thimble in A4 Stainless
WF57968

6mm x 60mm Carbine Hook Symmetrical with Safety Nut and Thimble in A4 Stainless
WF57969

8mm x 80mm Carbine Hook Symmetrical with Safety Nut and Thimble in A4 Stainless
WF57970

10mm x 100mm Carbine Hook Symmetrical with Safety Nut and Thimble in A4 Stainless
WF57971

11mm x 120mm Carbine Hook Symmetrical with Safety Nut and Thimble in A4 Stainless
WF57972

Prices are subject to quantity discounts based on a sliding scale. Enter the desired quantity in the relevant box in the table above. This will automatically calculate a line price indicating the applicable rate for the quantities selected. All prices shown exclude VAT.
